Custom CNC Machined Titanium CNC Milling With Arched Edge Triangular Cutouts Threaded Holes

Custom CNC Machined Titanium Alloy Bracket with Arched Edge, Triangular Cutouts & Threaded Holes – Lightweight Structural Connector for Aerospace, Medical & Precision Applications

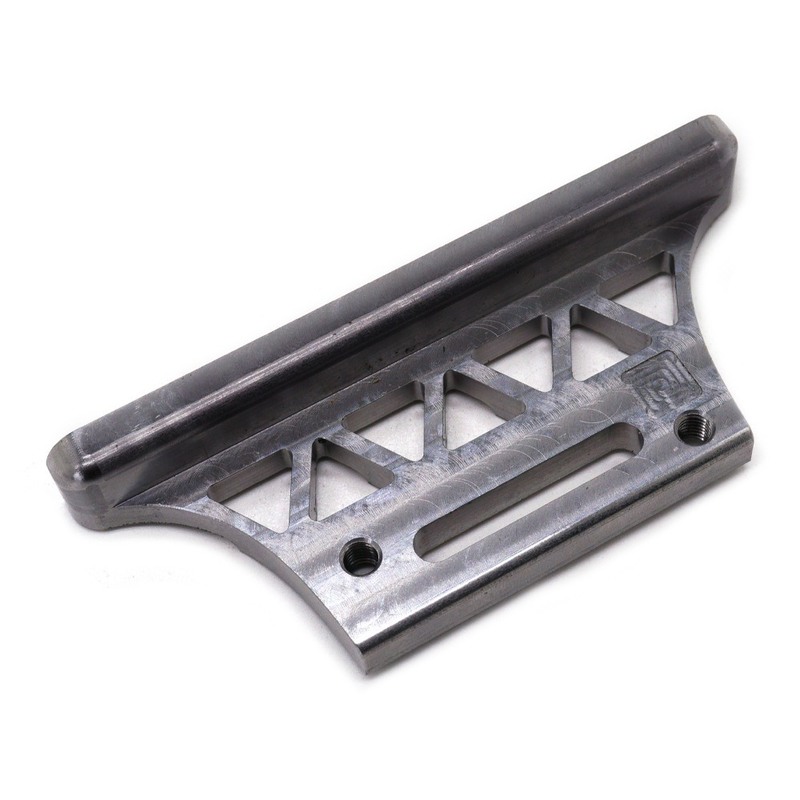

This custom titanium alloy bracket is a high-performance structural component engineered for advanced industries where lightweight strength, corrosion resistance, and dimensional precision are critical. Featuring a long, rectangular body with a raised arched edge, precision threaded holes, and triangular cutouts, the component is both functionally robust and material-efficient.

Manufactured through CNC machining, this part is ideal for applications in aerospace, medical devices, defense systems, robotics, and other mission-critical environments.

Key Features

• Material: Aerospace-grade titanium alloy (e.g., Ti-6Al-4V / Grade 5)

• Shape: Elongated profile with a curved edge structure for reinforcement

• Cutouts:

  • Geometrically patterned triangular perforations reduce weight while preserving strength

  • Optimized for airflow, material efficiency, or visual design

• Mounting Features:

  • Precisely machined threaded holes (custom thread spec: metric/imperial)

  • Allows secure assembly with mating components

• Finish: Natural titanium finish, bead blasted, polished, or anodized (optional for surface colorization or passivation)

Why Titanium?

• High strength-to-weight ratio – comparable to steel but ~45% lighter

• Excellent corrosion resistance – ideal for harsh or medical environments

• Non-magnetic & biocompatible – safe for sensitive equipment and human contact

• Superior fatigue resistance – reliable under repeated stress or motion

Typical Applications

This titanium bracket is designed for use in:

• Aerospace & UAV structures

• Medical instruments and implants

• High-performance robotics

• Precision optical or metrology systems

• Automotive motorsports components

• Corrosion-critical marine or offshore systems

Its lightweight design, tight tolerances, and multi-functional features make it suitable for high-value, space- or weight-constrained systems.

Manufacturing Capabilities

We are experienced in high-precision titanium component manufacturing, offering:

➤ CNC Machining (Titanium Specialists)

• 3-axis to 5-axis milling and turning

• Tolerances: ±0.005–0.01 mm

• Experience with Ti-6Al-4V, Grade 2, Grade 23, etc.

➤ Hole Drilling & Threading

• Internal thread cutting & tapping (M, UNC, UNF threads)

• Support for fine-pitch or deep hole threading

➤ Wire EDM & Waterjet

• For sharp internal corners or intricate cutouts

• No thermal distortion – ideal for titanium

➤ Surface Treatment

• Bead blasting for matte finish

• Anodizing (color or clear)

• Polishing or passivation

➤ Assembly Support

• Press-fit, inserts, PEMs, or pre-assembly on request

Quality Control

• ISO 9001:2015 Certified Processes

• 100% dimensional inspection

• Thread gauge, CMM, and visual finish checks

• Material certification (including Grade 5 / Ti-6Al-4V mill certs)

• Optional FAI / PPAP documentation available

Customization Options

We support full OEM/ODM customization based on your application:

• Custom dimensions, thread specs, hole patterns

• Alternative cutout shapes (hex, circular, slots, etc.)

• Laser engraving (logos, part numbers, serial codes)

• Anodized colors or passivated surfaces

• Assembly-ready packaging or kit delivery

You can submit:

• 2D Drawings (DWG, PDF)

• 3D Files (STEP, IGES, STL)

• Or a sample for reverse engineering

Why Choose Us

• 20+ years of experience with titanium alloy precision parts

• Specialized tooling for difficult-to-machine materials

• Engineering support from prototyping to full-scale production

• Low-volume prototypes + high-volume production flexibility

• Global shipping with export documentation
