Industrial Custom Aluminum Milling High Precision Mounting Plate Anodized Surface

Industrial custom aluminum milling

High Precision custom aluminum milling

Anodized Surface mounting plate

Brand Name:

ODM/OEM

Certification:

Rosh

Chat Now

Request A Quote

Product Details

CNC Machining Type:

Milling

Precision:

High

Surface Finish:

Smooth

Service:

Aluminum CNC Milling Parts

Compatibility:

Wide Range Of Materials

Cost:

Affordable

Color:

Silver

Material:

Aluminum

Quantity:

Small To Large

Size:

Customized

Lead Time:

Fast

Application:

Industrial

Complexity:

Low To Medium

Processing Type:

CNC Machining, CNC Milling

Tolerance:

+/- 0.005mm

Highlight:

Industrial custom aluminum milling

High Precision custom aluminum milling

Anodized Surface mounting plate

Payment & Shipping Terms

Minimum Order Quantity

100

Packaging Details

plastic bag, carton

Payment Terms

T/T, Paypal

Custom CNC Machined Titanium CNC Milling With Arched Edge Triangular Cutouts Threaded Holes

Chat Now

Black Anodized CNC Aluminum Cross Clamp Connector Dual C Shape Tube Clamps

Chat Now

6061 7075 5052 2024 Aluminum Enclosure Aluminum CNC Milling With Anodized Finish

Chat Now

Custom CNC Machined Gradient Anodized Aluminum Enclosure Electronic Spare Parts Housing

Chat Now

+86 17704053926

nicole@dgshuangxin.com

86-0769

Chat Now

Product Description

Custom CNC Milled High Precision Mounting Plate with Anodized Surface for Industrial Applications

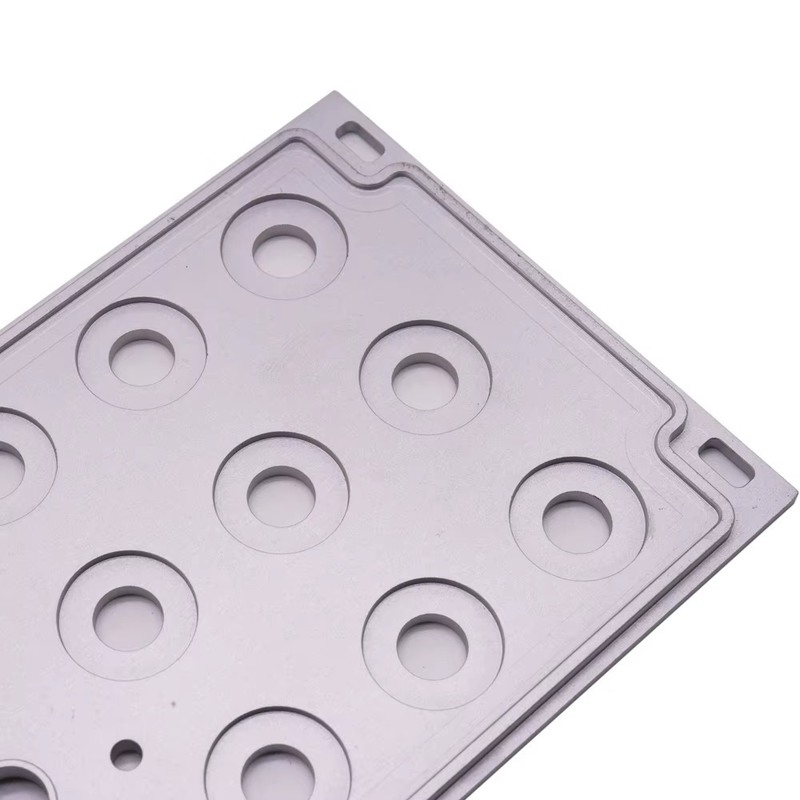

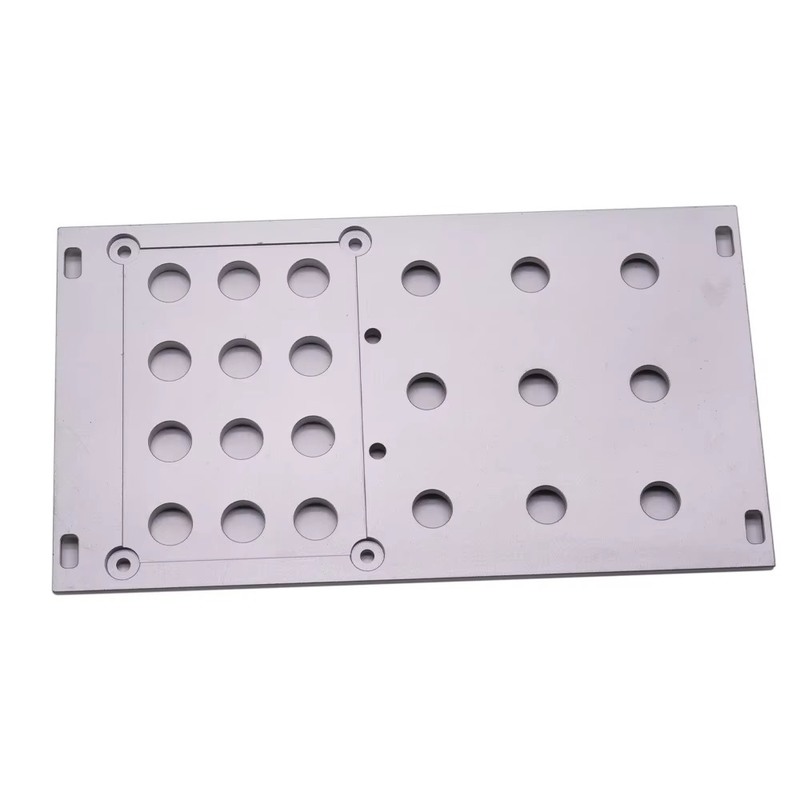

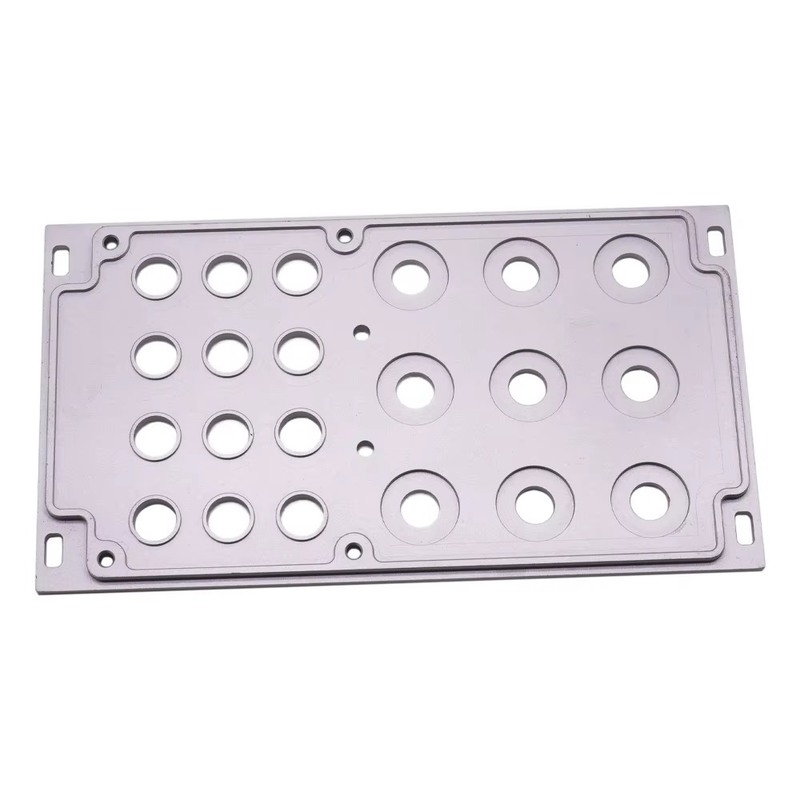

This custom aluminum mounting plate is a high-precision CNC milled component designed for industrial equipment, mechanical assemblies, and electronic device structures. Manufactured from high-grade 6061-T6 aluminum, this flat panel features a clean, matte light gray anodized surface, offering both corrosion resistance and a professional aesthetic.

The surface is precisely machined to include multiple circular holes of varying diameters:

Large and small through holes for wiring or module integration
Tapping and fastening holes for secure installation
Peripheral mounting structures for easy alignment and assembly

With a simple yet highly functional design, this part is suitable for use in automation systems, control panels, electronic enclosures, test fixtures, and mechanical subassemblies. The edges and corners are cleanly cut and chamfered, ensuring safe handling and seamless integration into your end product.

Technical Specifications

Feature	Description
Material	Aluminum Alloy 6061-T6 (Other grades available on request)
Machining Process	CNC Milling (5-axis / 4-axis depending on geometry)
Surface Finish	Light gray anodized, matte finish (Type II)
Hole Features	Custom-size round holes, countersinks, tapped holes
Dimensions	Fully customizable based on drawings or sample
Tolerance	±0.01mm standard; tighter tolerances available
Surface Roughness	Ra ≤ 1.6μm (machined); Ra ≤ 0.8μm (post-anodizing)
Applications	Mounting bases, device panels, structural plates, fixtures

Our CNC Machining Capabilities

At Shuangxin Industry, we offer full-service custom CNC machining, specializing in aluminum and high-precision industrial parts. Whether you're producing one-off prototypes or scaling to full production, we support your project at every stage.

Key Capabilities:

CNC Milling:
- 3-axis, 4-axis, and 5-axis machining for complex geometries
- Large-format machining for plates and panels (up to 1000mm length)
- Deep pocket milling, cutouts, and edge profiling
Precision & Quality:
- Tolerance control down to ± 0.005mm
- 100% inspection before delivery (CMM, height gauge, go/no-go gauges)
- ISO 9001:2015 certified quality management system
Material Options:
- Aluminum (6061, 7075, 5052), stainless steel, copper, engineering plastics
Surface Treatments:
- Anodizing (Type II/III), sandblasting, brushing, polishing, laser marking
- Optional clear/black/colored anodizing based on your aesthetic or protective needs
Secondary Operations:
- Threading, countersinking, engraving, press-fit inserts, sub-assembly

Flexible Production & Engineering Support:

Low-volume to mass production available with short lead times
Design for Manufacturability (DFM) feedback available for all new orders
OEM & ODM services for clients in electronics, automation, aerospace, and instrumentation sectors
