CNC Machined Aluminum Enclosure Housing Precision Milled Box Type Component

CNC Machined Aluminum Enclosure Housing – Precision Milled Box-Type Component With Internal Bosses And Multi-Geometry Holes For Mechanical & Electronic Assemblies

This CNC-milled aluminum enclosure housing is a high-precision structural component designed for use in complex mechanical or electronic systems. Manufactured from solid aluminum through multi-axis CNC machining, it features both an aesthetically refined external form and a highly functional internal structure optimized for component integration.

Design Features

• Form Factor:

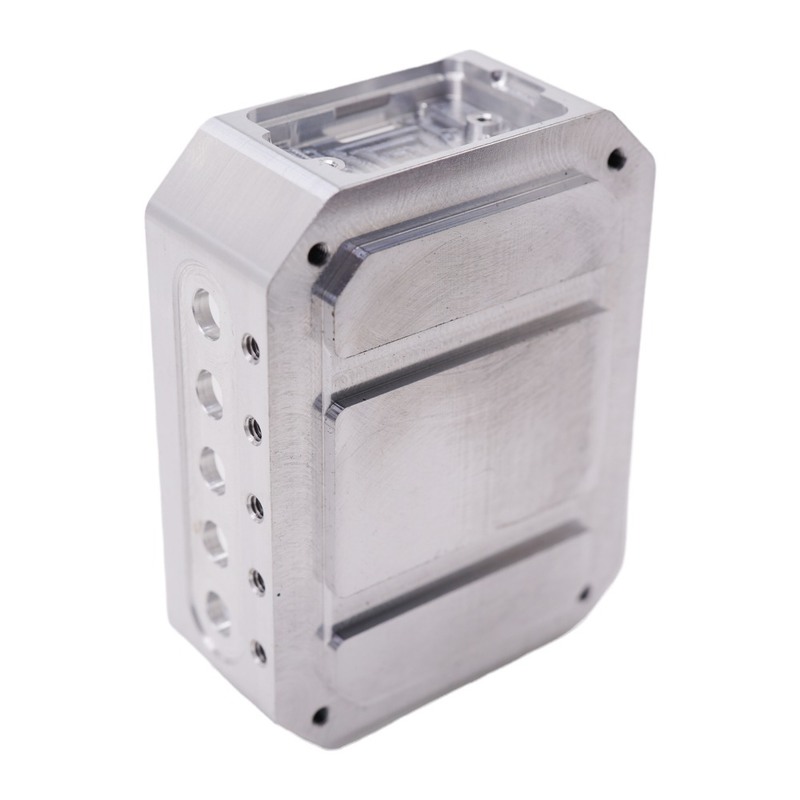

  The part features a box-like, rectangular cuboid shape with rounded edges and corners, providing a clean industrial look while improving structural durability and safety during handling or installation.

• Internal Structure:

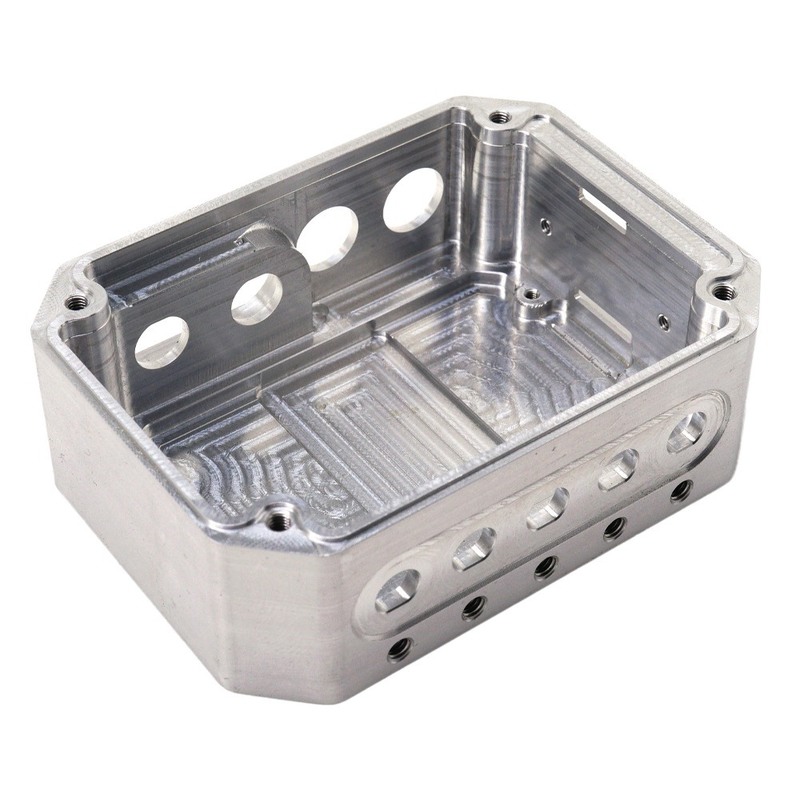

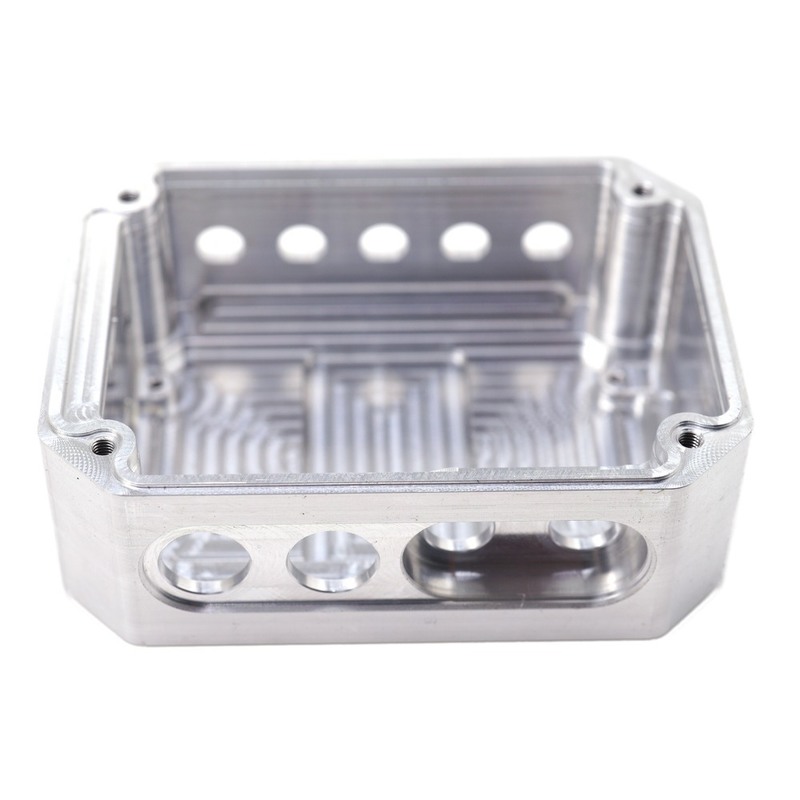

  The internal cavity of the housing is complexly machined to accommodate various sub-components.
  It includes:

  • Multiple cylindrical bosses for alignment, support, or screw threading

  • A grid of circular and non-circular holes, precisely arranged for connectors, fasteners, or heat dissipation

  • Custom cutouts, pockets, and steps to hold electronic or mechanical elements securely in place

• Surface Finish:
  Machined surface with optional anodizing or coating for enhanced appearance and corrosion resistance.

Material Details

• Material: High-grade aluminum alloy (e.g., 6061, 6063, 7075, etc.)

• Finish Options:

  • Natural anodizing (silver, black, color options)

  • Sandblasting + anodizing for matte effect

  • Electrophoresis, powder coating, or custom finishes

Functional Applications

This enclosure is engineered to:

• House and protect internal components

• Enable secure mechanical mounting and precise positioning

• Allow cable, signal, and thermal pathways through its customized hole patterns

• Withstand mechanical stress and provide long-term dimensional stability

Common use cases include:

• Embedded electronic systems

• Robotics and automation equipment

• Precision machinery modules

• Communication and sensor enclosures

• Instrumentation housings

Manufacturing Capabilities

As an experienced precision machining supplier, we offer:

• CNC Milling (3-axis, 4-axis, 5-axis)
  – ±0.01mm tolerance achievable
  – Complex cavity, undercuts, thin walls, and tight fits

• CNC Turning
  – For mating parts like threaded inserts, pins, or shafts

• Drilling & Tapping
  – Automated tapping of threads, multi-size hole processing

• EDM & Wire Cutting
  – For internal sharp angles or complex profiles

• Surface Finishing
  – Anodizing, polishing, sandblasting, laser engraving, etc.

• Assembly Support
  – Component pre-assembly, hardware installation, sealing solutions

• CAD/CAM Engineering
  – DFM (Design for Manufacturability) review
  – Support for STEP, IGS, STL, DWG, and PDF drawings

Quality Control

We maintain strict quality standards through:

• ISO 9001:2015 Certified Workflow

• Full dimensional inspection reports

• CMM & optical measuring equipment

• Material certifications and RoHS compliance (upon request)

Customization Options

We support full customization based on your design or sample:

• Dimensions, wall thickness, and internal layout

• Mounting features: inserts, threaded holes, heat sinks

• Branding: laser engraving, logo etching

• Surface treatment tailored to your industry standards

Why Choose Us

• 20+ years CNC machining experience

• Low MOQ and fast prototyping

• Competitive pricing with global shipping

• Flexible support for startups to large-scale OEMs

Contact Us

Whether you're developing an advanced control unit, robotic module, or high-performance sensor housing, we can deliver the precision aluminum enclosures your project demands.

Contact us today for:

• Quotation within 24 hours

• Free DFM analysis

• Sample production or small batch pilot runs
