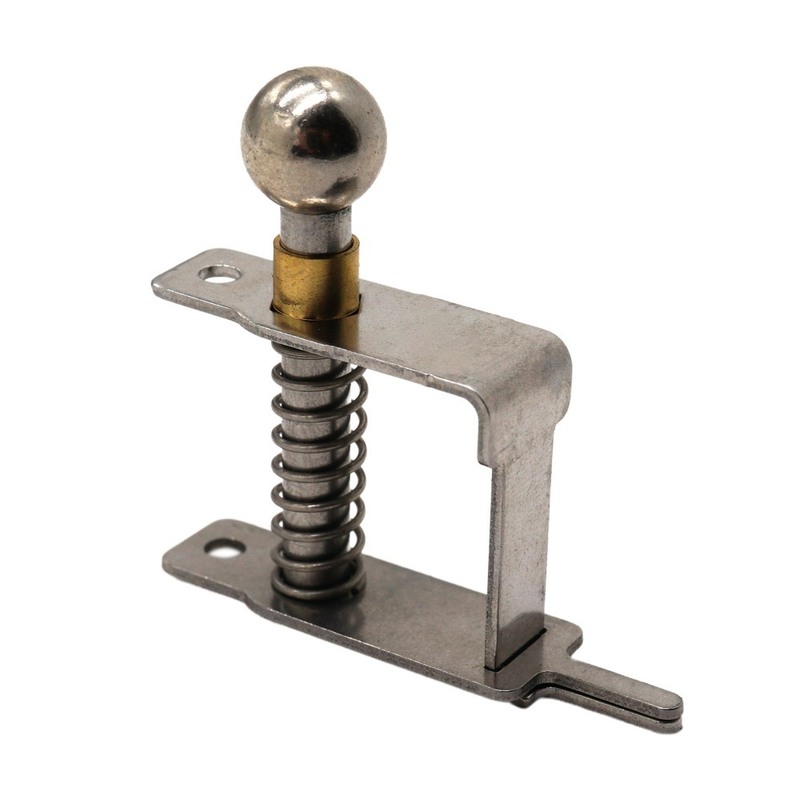

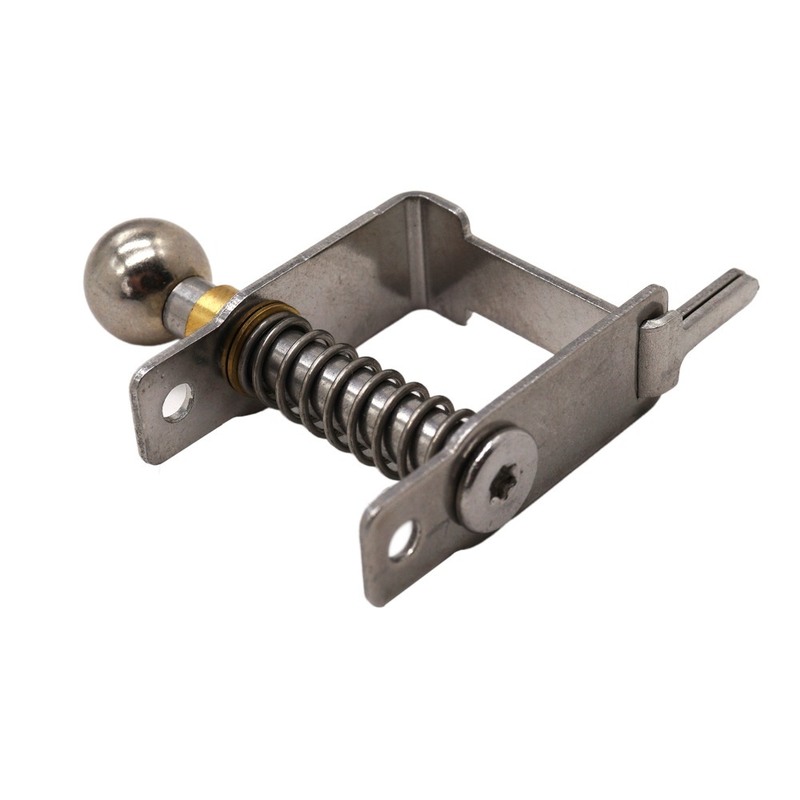

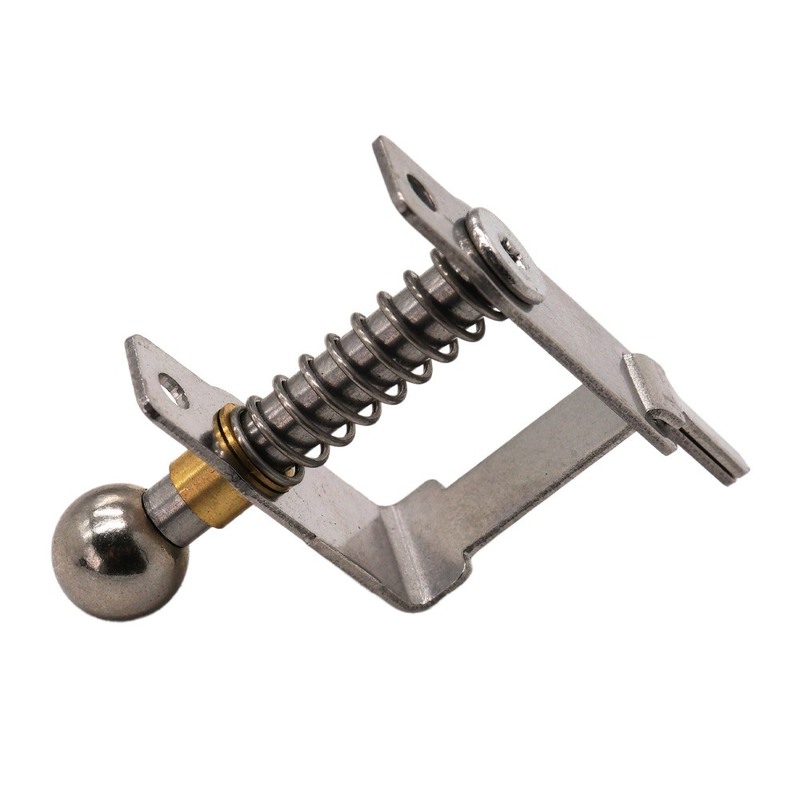

Spring Loaded Mechanical Assembly With Mounting Plate U Bracket Ball Head Shaft Brass Bushing precision metal parts
This spring-loaded mechanical assembly is a high-precision, compact metal component designed for integration into industrial equipment, automation systems, or mechanical devices requiring elastic connection, precise positioning, or trigger-based actuation.
Constructed from robust metal materials, the assembly consists of several tightly integrated parts engineered for performance, durability, and ease of mounting.
Base Plate
A flat metal base featuring two mounting holes, allowing the component to be securely fixed to external structures or frames. The plate provides stable support for the entire mechanism.
U-Shaped Metal Bracket
Mounted vertically on the base plate, the U-bracket acts as a support housing. One side of the bracket extends into a flat metal tab, which may serve as a structural reinforcement or connection point.
Central Shaft with Ball Head
Passing through the center of the bracket is a smooth, cylindrical metal rod, whose upper end is topped with a polished metal ball head. This rounded tip can be used for precise contact, positioning, or as a trigger interface.
Brass Bushing (Golden Sleeve)
Fitted around the shaft beneath the ball head is a gold-colored brass bushing, which provides low-friction guidance and enhances wear resistance.
Compression Spring
A robust metal spring is compressed between the brass bushing and the base plate, giving the shaft vertical elasticity. The spring mechanism enables controlled retractability, restoring the shaft to its original position after displacement.
This component is designed to serve multiple functions in mechanical systems:
Elastic connection for movable parts
Precise contact or positioning
Mechanical triggering or limit sensing
Dampening or shock absorption
It is ideal for use in:
Industrial automation equipment
Robotic systems
Mechanical control panels
Automotive and transport devices
Safety limiters or position feedback devices
Base Materials: Carbon steel, stainless steel, or alloy steel (customizable)
Surface Finish: Zinc plating, nickel plating, powder coating, or anodizing (depending on part)
Bushing Material: Brass or bronze alloy for smooth motion
Spring: High-tensile steel with anti-corrosion treatment
We provide end-to-end precision metal part fabrication services, including:
Stamping & Laser Cutting
– For mounting plates, brackets, and custom profiles
CNC Machining
– For precision shafts, bushings, and mating components
Metal Forming & Bending
– Custom U-brackets, tabs, and folded structures
Turning & Grinding
– For smooth ball-head finishing and tolerance control
Spring Manufacturing & Assembly
– In-house spring winding, heat treatment, and component integration
Welding & Riveting
– Structural joining and reinforcement
Surface Treatment
– Anti-rust plating, passivation, polishing, etc.
All parts undergo strict inspection and quality control protocols:
ISO 9001:2015 certified process
Dimensional inspection, functional testing, and durability validation
Full support for FAI, PPAP, RoHS, and REACH compliance
We welcome OEM and ODM projects.
Clients can specify:
Component dimensions
Mounting hole patterns
Shaft diameter and stroke length
Spring stiffness
Surface treatments
Integration requirements (connectors, fasteners, etc.)
Standard or custom packaging
Protective wrapping for delicate components
Global shipping support with short lead times
Looking for a reliable mechanical assembly manufacturer for your next automation or industrial design project?
We’re ready to support your prototype and mass production needs with engineering excellence and flexible customization.
