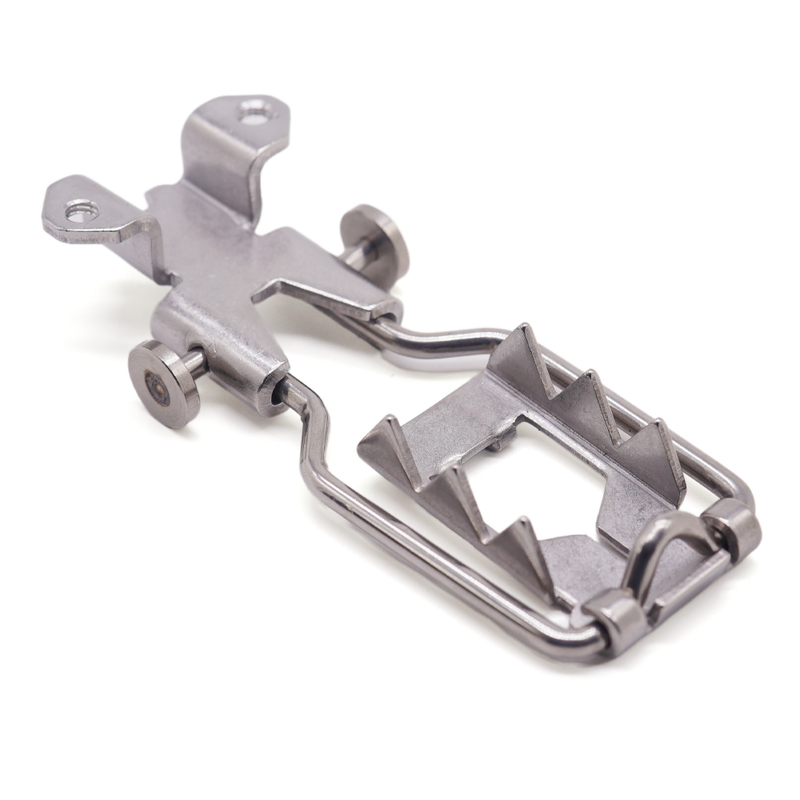

0.3-4mm Progressive Die Stamping Stainless Steel Clamp High Precision

Progressive Die Stamped Stainless Steel Clamp

Product Highlights

▸ Integrated Progressive Die Stamping - Combines 6+ operations (punching, notching, bending) in one process

▸ Secure Grip Design - Serrated teeth + return bends for vibration resistance

▸ Rapid Mass Production - 1,000+ pcs/hour with ±0.1mm consistency

▸ Material Flexibility - SPCC, SUS304, aluminum

Detailed Manufacturing Process

1.  Progressive Die Stamping Workflow

Stage 1-2:

• Pilot hole punching → Material positioning

Stage 3-4:

• Functional holes (Ø2-12mm) → Serrated teeth forming (30°-60° bite angle)

Stage 5-6:

• 90° vertical bends → 180° return flange forming

Stage 7+:

• Final trimming → Automated ejection

2. Critical Tolerance Control

Precision Multi-Stage Metal Forming Technology

Our progressive die stamping process delivers high-volume, precision metal parts with complex features including:

▸ Multi-angle bends (90°, 180° returns)

▸ Functional geometries (serrations, notches, flanges)

▸ Precision apertures (holes, slots, custom cutouts)

▸ Assembly-ready features (interlocking tabs, locating features)

Industry Applications

▸ Automotive: Brackets, clips, electrical components

▸ Electronics: Connectors, shielding, heat sinks

▸ Industrial: Fasteners, machinery components

▸ Consumer Goods: Appliance parts, hardware
