Custom CNC Turned Aluminum Disc Gear With Peripheral Teeth Central Rectangular Mount

Custom CNC Turned Aluminum Disc Gear Component With Peripheral Teeth And Central Rectangular Mount – Precision Part For Mechanical Power Transmission

This precision-engineered mechanical component is manufactured from high-grade aluminum using advanced CNC turning technology. It features a circular disc form, combining gear-like transmission functionality with integrated structural elements for mounting or positioning, making it suitable for various mechanical drive systems and equipment assemblies.

Key Product Features:

• Material
  Made of lightweight yet durable aluminum alloy, this part offers excellent strength-to-weight ratio, corrosion resistance, and thermal stability—ideal for high-performance mechanical applications.

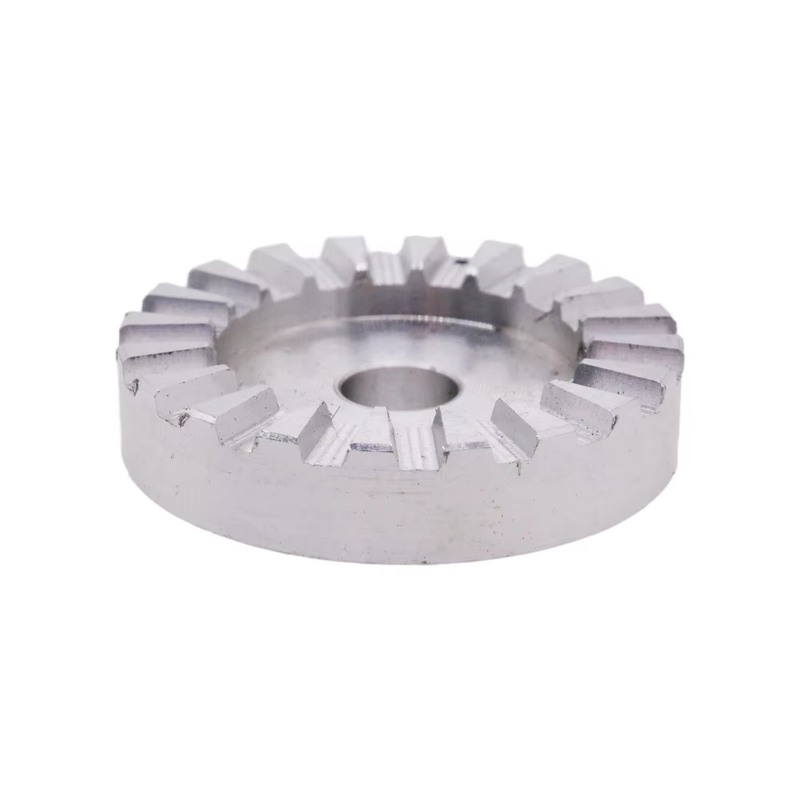

• Disc-Shaped Body with Peripheral Teeth
  The front face of the component features a circular array of evenly spaced teeth along its outer edge. These finely machined teeth ensure precise engagement with other drive components, such as gears, pulleys, or indexed rollers. The high tooth count and uniform spacing contribute to smooth rotational motion and consistent torque transfer.

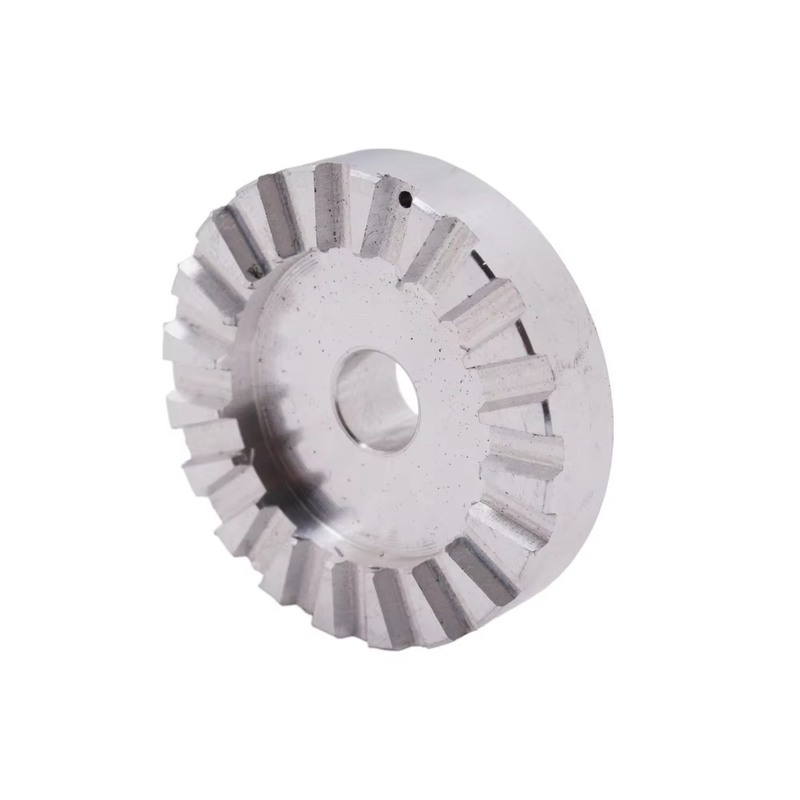

• Central Through Hole (Front View)
  A circular center hole runs through the component, providing a clean and accurate bore for axle mounting, shaft passing, or rotational alignment.

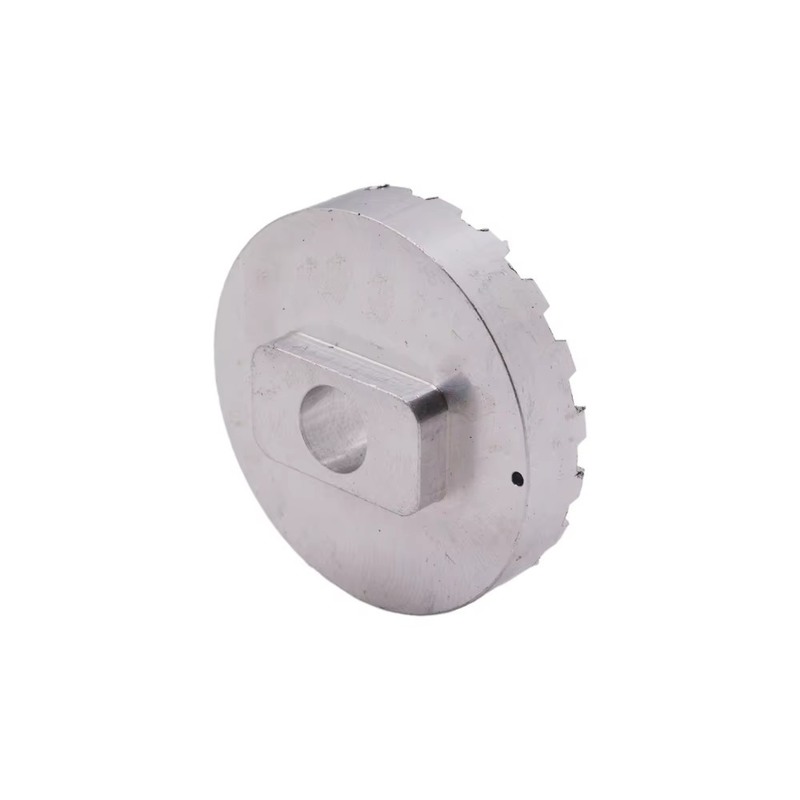

• Raised Rectangular Mount (Back View)
  On the reverse side, a protruding rectangular block is machined at the center. This block includes its own center hole, which is fully aligned and connected with the front-facing through-hole. The rectangular feature can serve as a locating tab, drive key, or mounting interface, enabling precise and repeatable installation in mating components or housings.

Functional Applications

This part is ideal for use in:

• Mechanical transmission systems

• Indexing or rotary positioning devices

• Robotics and automation assemblies

• Custom drive mechanisms

• Equipment where gear engagement and part alignment are both critical

Its hybrid design of peripheral teeth and mounting block allows for simultaneous power transmission and structural integration, supporting both dynamic and static roles within a machine assembly.

Our Manufacturing Capabilities

As a precision CNC machining supplier, we offer custom aluminum parts and complex mechanical components tailored to your specific design and functional requirements.

Core Capabilities:

• Materials Available:
  Aluminum alloys (6061, 7075, 2024, etc.), stainless steel, brass, titanium, plastics, and more

• Machining Services:

  • CNC turning

  • CNC milling

  • Multi-axis machining (up to 5-axis)

  • Gear cutting, broaching, knurling

• Custom Features Supported:

  • Precision gear teeth and spline profiles

  • Complex through-holes and keyways

  • Integrated mounting tabs or blocks

  • Concentricity and surface flatness control

• Surface Finishes:
  Anodizing (clear, black, color), sandblasting, polishing, hard coating, passivation, etc.

• Production & Quality:

  • Rapid prototyping to large-scale production

  • Dimensional tolerances as tight as ±0.01 mm

  • Full inspection reports, CMM measurement, surface roughness checks

  • ISO-compliant manufacturing & quality control systems

Looking for a custom gear disc or machined aluminum part for your assembly line?
We provide expert engineering support and fast delivery on CNC precision parts. Send us your drawings or specifications today for a free quote and sample evaluation.

Contact us now for OEM/ODM machining services!
