Custom Cylindrical Metal Threaded Nut With External Gear Teeth Insulating White Plastic Sleeve

Custom Cylindrical Metal Threaded Nut with External Gear Teeth and Insulating White Plastic Sleeve – Precision Hybrid Component for Mechanical Locking & Electrical Isolation

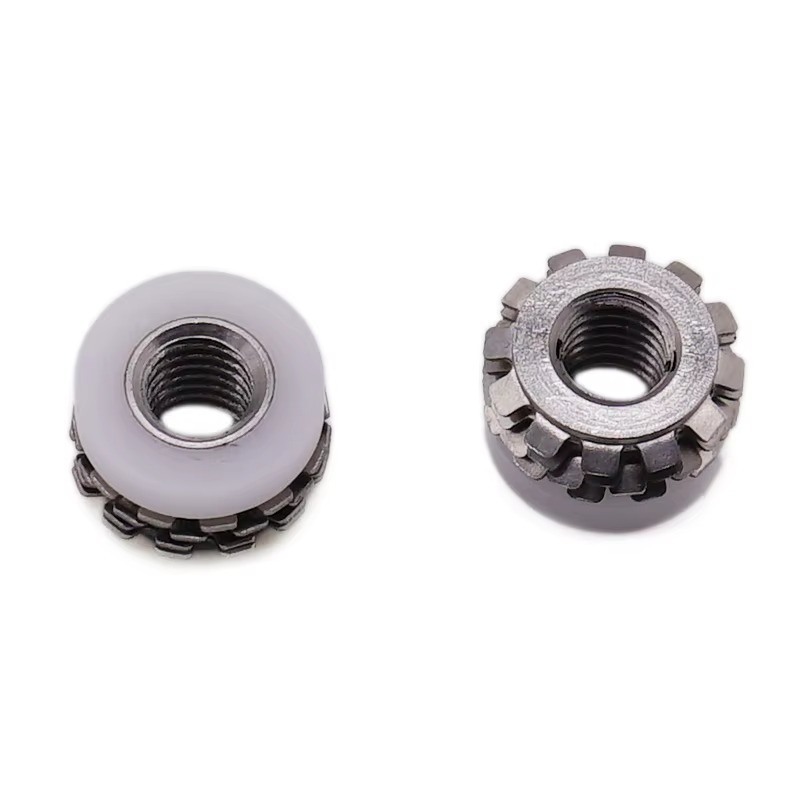

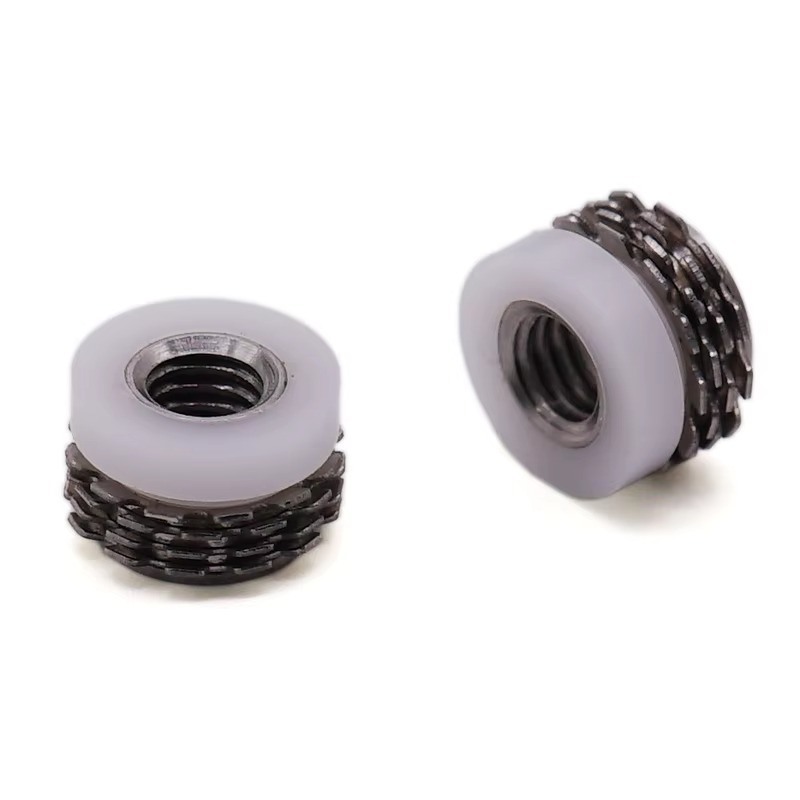

This custom-engineered hybrid nut component combines the mechanical strength of metal with the functional versatility of engineered plastic. Featuring a cylindrical profile, the product is designed for enhanced mechanical locking, electrical insulation, and vibration damping in various industrial applications.

Key Structural Features:
• Internal Threaded Core:
At the center lies a precision-machined metal threaded hole, providing secure and stable fastening capability. The threading is cleanly cut, compatible with standard bolts or threaded rods used in mechanical assemblies.
• White Plastic Insulating Sleeve:
Surrounding the metal core is a white plastic ring that acts as both an insulator and a cushioning layer. This non-conductive component offers protection against short-circuits, absorbs vibrations, and reduces mechanical wear during repeated use.
• External Gear-Like Tooth Structure:

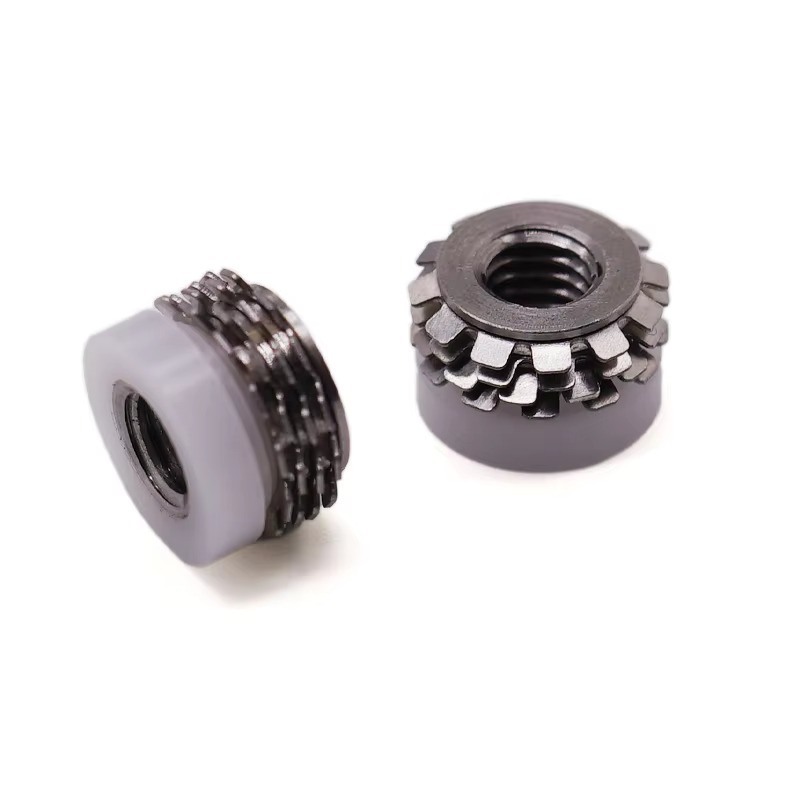

At the base, the nut features an evenly spaced, gear-like tooth structure made of hardened metal. These precision teeth are distributed around the circumference in a tight, uniform pattern. From the reverse side, the full circular array of teeth is clearly visible—offering robust grip and interlocking performance when mated with corresponding mechanical components.

Functional Advantages:
• Hybrid Construction: Combines the durability of metal with the functionality of plastic insulation.
• Gear Teeth Design: Enhances mechanical stability, prevents loosening, and enables rotational interlock.
• Insulation & Damping: White plastic ring improves safety and equipment longevity.
• Application Flexibility: Can serve in fastening, torque transfer, anti-slip engagement, or alignment locking mechanisms.

Our Manufacturing Capabilities

We specialize in custom-designed fastening and hybrid mechanical components. With advanced CNC machining, insert molding, and metal-forming technologies, we are equipped to deliver high-precision parts tailored to your specifications.

Core Manufacturing Services:

• Material Options:

  • Metals: Carbon steel, stainless steel, brass, aluminum alloy

  • Plastics: Nylon (PA), POM, PTFE, ABS, custom-engineered polymers

  • RoHS-compliant and high-performance materials available upon request

• Processes:

  • CNC turning, threading, milling

  • Insert molding for metal-plastic hybrid parts

  • Gear cutting and tooth-forming

  • Surface treatments: anodizing, plating, passivation, polishing, etc.

• Customization Support:
  We accept CAD drawings, samples, or technical descriptions. Our engineering team can assist in optimizing product function and manufacturability.

• Production Capacity:
  From rapid prototyping to large-scale OEM/ODM production, with tight quality control across all stages.

• Inspection & Quality Assurance:

  • Dimensional and thread inspection

  • Material and hardness testing

  • Tooth profile verification

  • Functional fit and performance tests

Looking for a precision hybrid nut or custom fastener with enhanced locking and insulation performance?
We provide end-to-end OEM solutions tailored to your design. Contact us now for quotes, samples, or technical consultation.
