Custom Iron Retaining Snap Ring Precision Symmetrical Clamp Clip With Claw Like Ends

Custom Iron Retaining Snap Ring – Precision Symmetrical Clamp Clip with Claw-Like Ends for Mechanical Fastening Applications

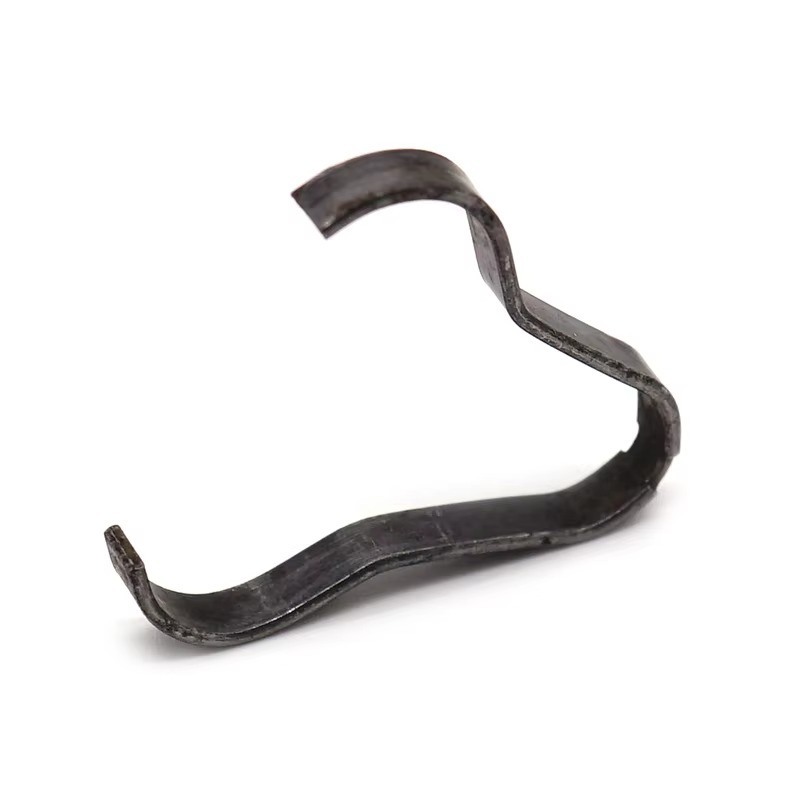

This custom-formed iron snap ring (retaining ring) is a specialized mechanical fastening component designed for secure positioning, locking, and retention in various industrial assemblies. Fabricated using advanced CNC spring forming machinery, this part features a unique symmetrical design optimized for strength, precision, and reliability.

Key Structural Features:

• Symmetrical Arched Body:
  The core body of the snap ring exhibits a mirrored, arched structure that balances stress distribution during installation and operation. A small notch is present at the top center, aiding in tool access or mechanical positioning.

• Curved Extension Arms:
  From the arched center, two side arms extend downward with a smooth curvature, enhancing the spring tension and fitment control. These arms provide the flexibility needed for snap-fit operations or insertions into circular grooves or slots.

• Claw-Shaped Ends:
  The ends of each arm are inwardly bent, forming a distinctive “claw” shape. This configuration offers additional grip, anchoring power, and resistance to axial movement, ensuring stable engagement within mechanical or electronic assemblies.

Manufactured from high-strength iron wire, this product delivers dependable elasticity and mechanical durability. The surface can be treated or coated (e.g., black oxide, zinc plating) based on specific environmental or corrosion-resistance requirements.

Applications Include:

• Shaft or bore retention in mechanical assemblies

• Spring-loaded locking systems

• Automotive clips and fastening systems

• Appliances, tools, or custom fixtures

• Snap-fit assemblies requiring strong hold force with removable design

Our Manufacturing & Customization Capabilities

As a specialized wire forming and spring manufacturer, we offer complete custom production services for snap rings, retaining clips, and other wire-formed components.

Capabilities Overview:

• Material Options: Iron, stainless steel, carbon steel, phosphor bronze, alloy steel, and more

• Precision Forming: CNC spring coiling & wire forming (2D/3D shapes, multi-axis bending)

• Custom Designs: Prototyping and development from drawings or samples

• Surface Treatments: Black oxide, galvanization, powder coating, chrome plating, etc.

• Production Volumes: Low MOQ prototyping to large-scale OEM production

• Strict QC: Dimensional checks, hardness testing, spring force analysis, fatigue testing

Need a custom snap ring or fastener for your assembly?
We welcome OEM/ODM inquiries and offer engineering support to help bring your designs to life. Contact us for a quote or samples evaluation today.
